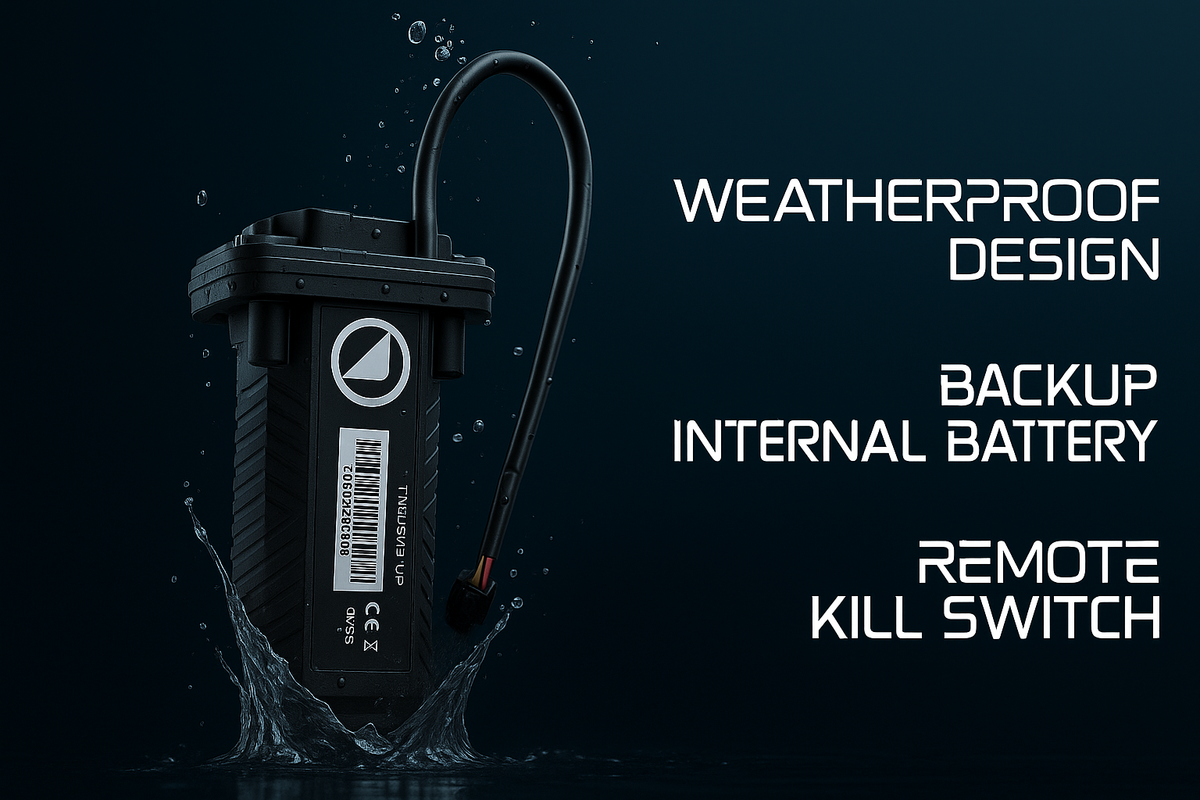

Waterproof 4G LTE Tracker with Kill Switch & Backup Battery for Turo Hosts and Fleets Operators
The FleetBold HW01 is a waterproof 4G LTE hardwired GPS tracker with 7-second updates, global coverage, backup battery, and remote ignition control. Ideal for Turo hosts, car rentals, and fleets needing reliable real-time tracking.
Why Choose a Hardwired GPS Tracker for Fleet and Turo Vehicles
For Turo hosts and fleet operators, reliability, accuracy, and control are essential. The FleetBold HW01 Hardwired GPS Tracker delivers all three offering real-time 4G LTE tracking with 7-second live updates, Turo booking synchronization, and weatherproof construction for all conditions.
Unlike plug-in trackers, the HW01 is permanently wired for constant power and includes a built-in backup battery that keeps it online even if the car battery is disconnected. With the added kill switch feature, hosts can remotely disable ignition for unmatched security and peace of mind.
Key Features of the FleetBold HW01 Hardwired GPS Tracker
| Feature | Description | Why It Matters |
|---|---|---|
| 4G LTE Real-Time Tracking | Nationwide LTE coverage with precise location reporting. | Reliable data transmission for every trip. |
| 7-Second Live Update Interval | Sends location updates every 7 seconds while driving. | Delivers near real-time accuracy for detailed trip tracking. |
| Waterproof & Durable Design | IP-rated housing protects against rain, heat, and dust. | Ideal for outdoor or all-weather fleets. |
| Built-In Backup Battery | Internal rechargeable battery powers the device for hours if vehicle power is cut. | Keeps tracking active even after tampering or battery removal. |
| Integrated Kill Switch | Remotely disable ignition through the FleetBold dashboard. | Prevents unauthorized use, theft, or overdue trip issues. |
| Turo Bookings Synchronization | Syncs trips and reservations from your Turo account. | Track bookings and live trips directly in your FleetBold dashboard. |
| Hardwired Installation | Connects directly to the vehicle’s power system (12V/24V). | Always on no guest interference or OBD access needed. |
| Trip History & Mileage Logs | Automatically records routes, distances, and speeds. | Simplifies recordkeeping and dispute resolution. |
| Geofence Alerts | Create custom zones for pickup, drop-off, or restricted areas. | Get instant notifications when vehicles move outside set zones. |
| Tamper & Movement Detection | Alerts you if disconnected, moved, or powered off. | Prevents unauthorized interference or theft. |
| FleetBold Dashboard Integration | Manage Tesla, OBD, and hardwired trackers in one place. | Simplifies multi-fleet management. |
| $12.99/Month Subscription | Includes LTE connectivity, alerts, and full dashboard access. | Affordable, all-in-one tracking plan. |

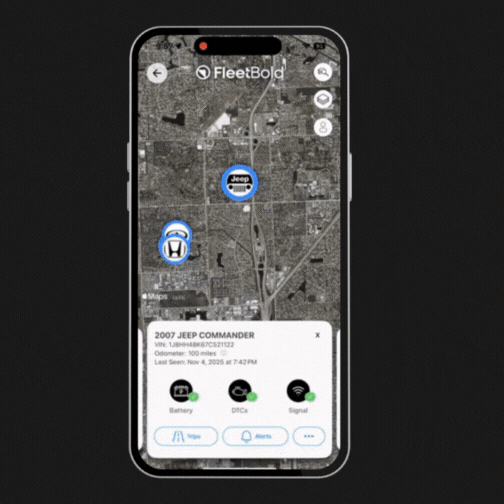

7-Second Real-Time Updates for Maximum Accuracy
The FleetBold HW01 transmits live data every 7 seconds, providing near real-time accuracy and trip visibility.
Whether monitoring a single car or a fleet of vehicles, you’ll see precise movement, routes, and speed changes in real time giving you the fastest updates in its class.
Continuous Tracking with Backup Battery Protection
If someone disconnects the car battery, the HW01 keeps running thanks to its integrated backup battery.
It continues transmitting GPS data and alerts for several hours ensuring you always know where your vehicle is, even during tampering or power loss.
Global Coverage
The FleetBold HW01 is equipped with a global SIM and network support, allowing it to operate across North America, Latin America, Europe, and many international regions where LTE networks are available.
This means that wherever your vehicles go, your tracking remains live, reliable, and accurate.
Fleet managers and international operators benefit from:
- Seamless coverage across borders
- Automatic network switching to the strongest signal
- No additional setup for roaming or regional compatibility
Whether you’re a Turo host in the U.S., a car rental operator in Canada, or managing fleet logistics abroad, the HW01 keeps your vehicles visible anywhere in the world.
Kill Switch for Total Remote Control

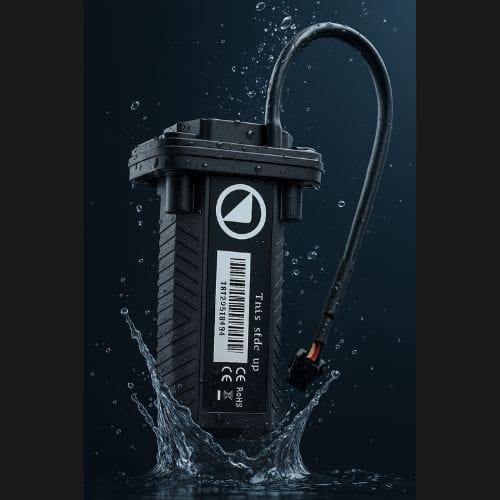

Waterproof Reliability in Every Environment
The HW01 is built with a weatherproof IP-rated shell designed to withstand rain, dust, and heat.
It’s perfect for vehicles parked outdoors or operating in harsh conditions maintaining full functionality.

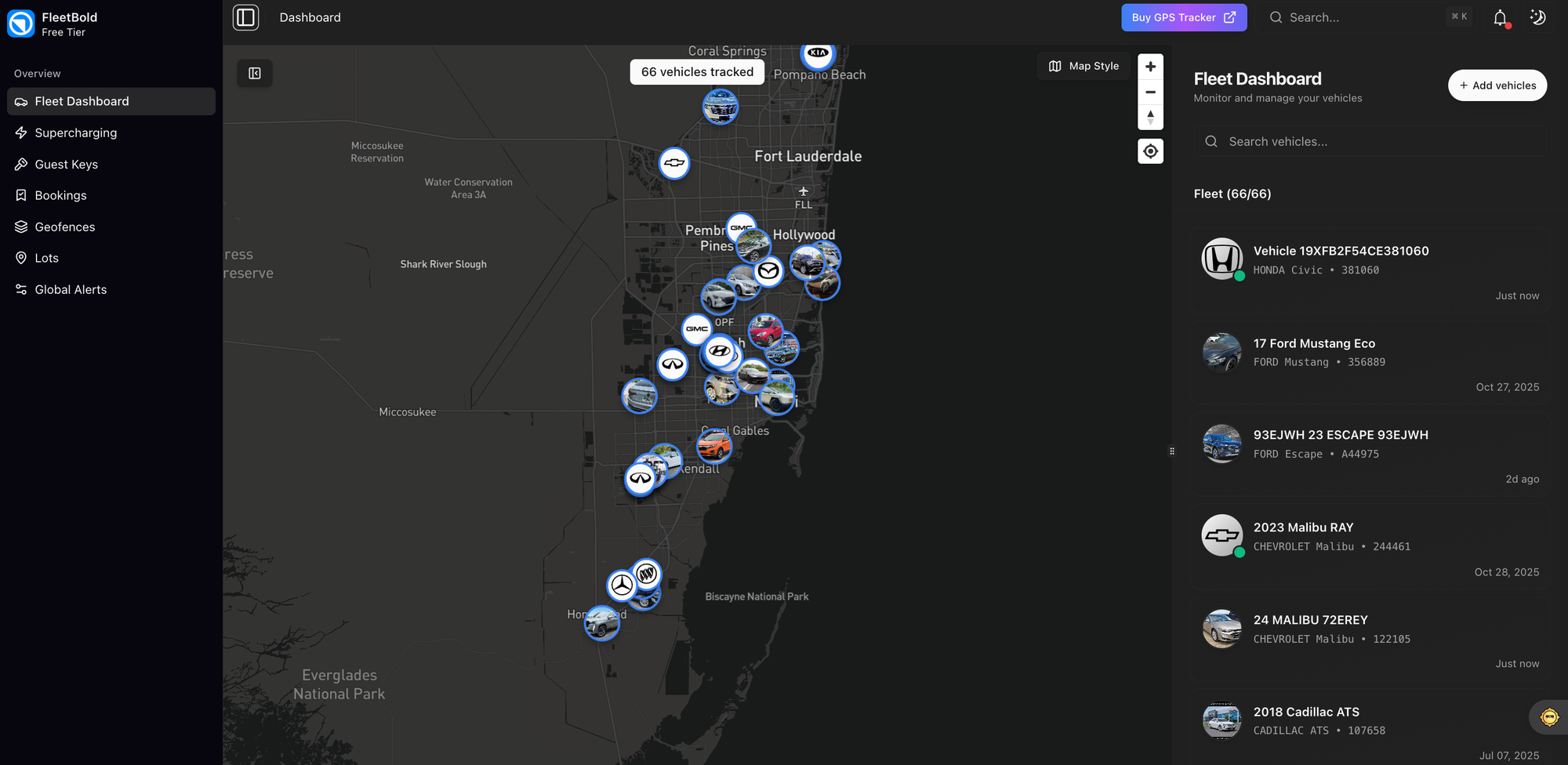

Seamless Turo Booking Synchronization

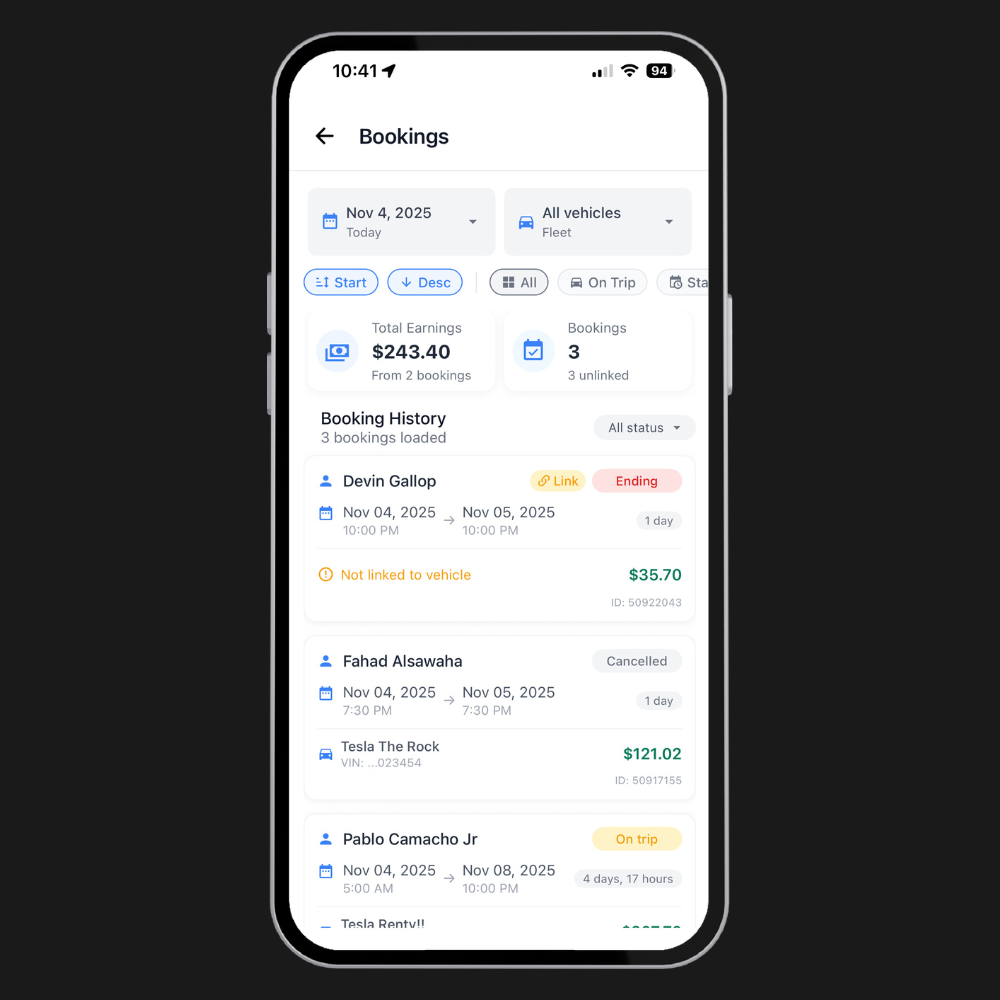

FleetBold automatically integrates your Turo bookings into the dashboard.
You can monitor which guest is driving, view active trips, and track vehicle movement in real time no manual setup required.
This makes managing multiple vehicles and guests more efficient and transparent.

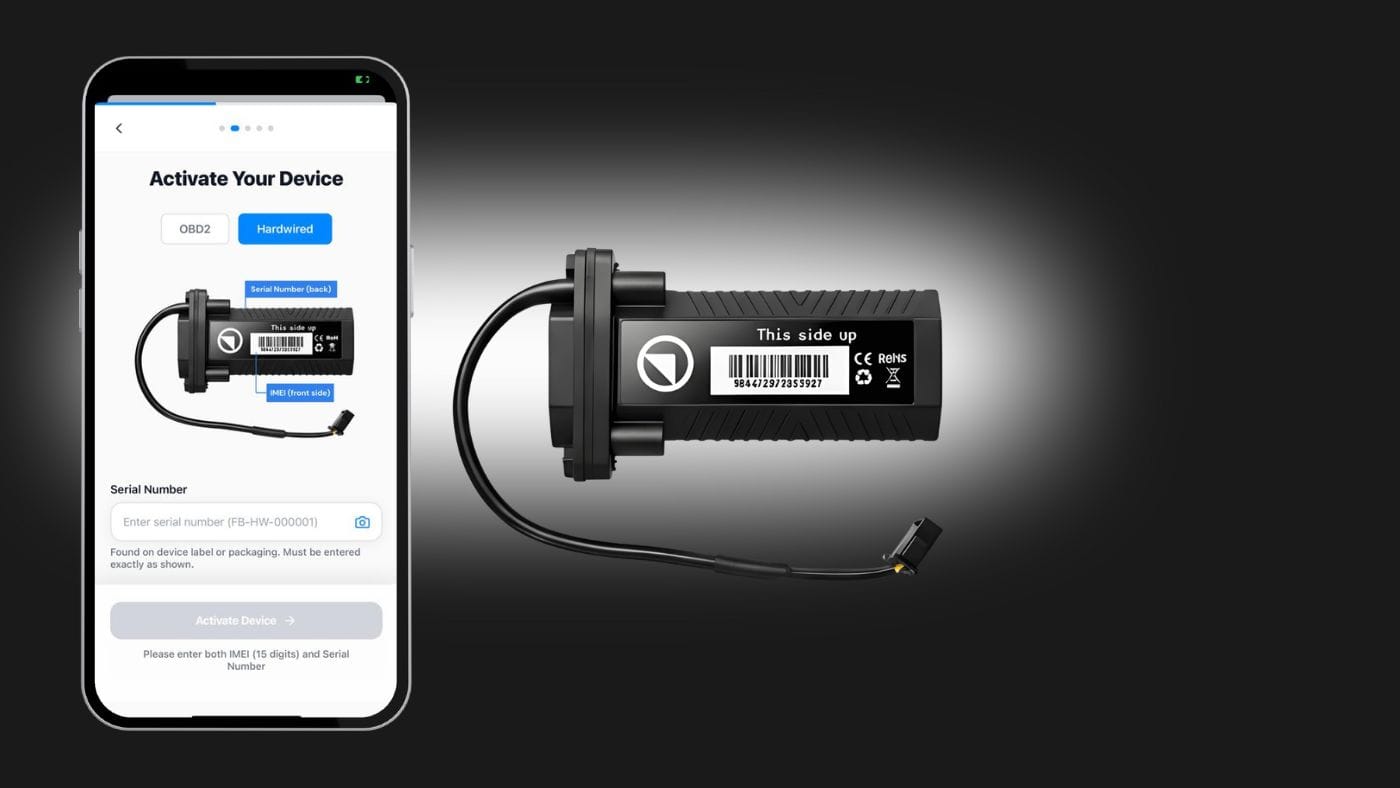

⚠️ Important Activation Note
Before proceeding with installation (connecting the wires, power, or mounting the unit), please make sure to activate your device first.
Each FleetBold Hardwired GPS Tracker has two unique codes the IMEI and the Serial Number.
For security reasons, only one of these codes is visible on the box, while the other is printed directly on the device itself.
You’ll need both codes during activation, so please locate and activate the device before installation to ensure a smooth setup and connection process.
Professional Installation and Wiring Setup
Installing the FleetBold HW01 Hardwired GPS Tracker typically takes about 15–30 minutes and follows a simple wiring process.
Before beginning, make sure the vehicle ignition is turned off and the battery is disconnected to ensure safety.
Installation Steps (Follow the Wiring Diagram Below)
- Disconnect the vehicle battery Always start by removing the negative terminal to prevent short circuits.
- Locate the following wires in your vehicle:
- Constant Power (Red Wire): Connect to the +12V battery terminal for continuous power supply.
- Ground (Black Wire): Connect to a secure metal ground point on the vehicle chassis.
- Ignition (Orange Wire): Connect to the ACC/ON position wire from the ignition switch this allows the tracker to detect when the vehicle starts or shuts off.
- Relay / Kill Switch (Yellow Wire): Connect to the relay terminal (pin 86) as shown in the diagram. The relay then connects to the ignition or fuel pump line, allowing remote engine disable.
- Install the relay (if using the kill switch function) following the exact configuration shown:
- Pin 30: Connect to the original ignition or fuel pump wire.
- Pin 87a: Connect back to the same circuit to maintain normal operation.
- Pin 85: Connect to ground.
- Pin 86: Connect to the yellow wire from the tracker.
- Mount the HW01 device securely behind the dashboard or in a concealed, dry area avoiding direct heat or moisture exposure.
- Reconnect the vehicle battery and power on the ignition.
- Open the FleetBold app to pair and verify the device connection. Once connected, you should see live location updates and ignition status on your dashboard.

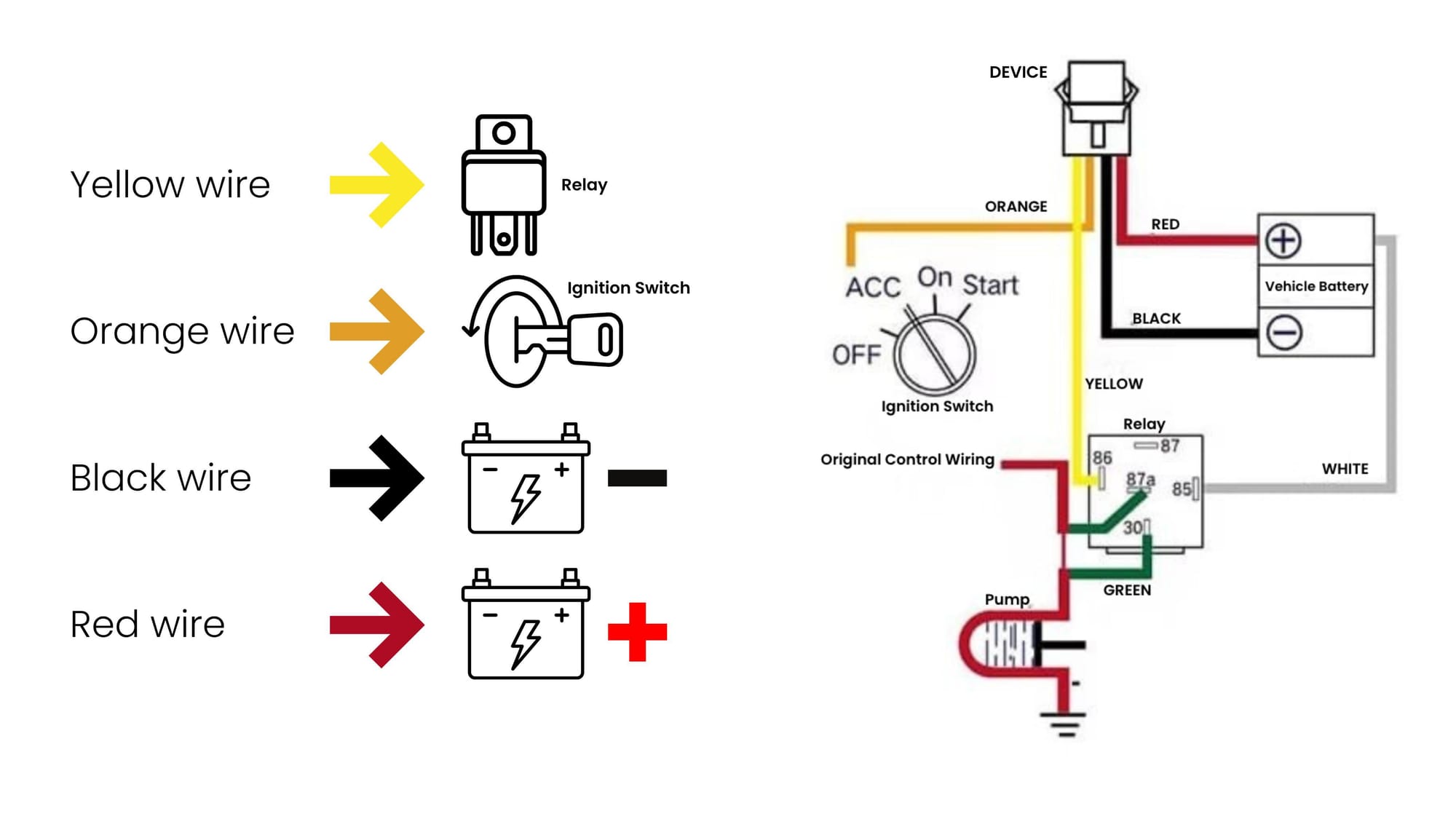

Wiring Diagram for FleetBold HW01 Installation
Below is the official wiring diagram for the FleetBold HW01. It visually shows how each wire connects to power, ignition, ground, and the relay for kill switch functionality.
Smart Alerts and Reporting
The HW01 automatically sends alerts for:
- Geofence entry and exit
- Overspeeding
- Ignition on/off
- Tamper or power disconnect
- Backup battery activation
All trips and alert data can be exported for reporting, taxes, or dispute resolution.
Built for Turo Hosts, Fleets, and Professionals
The HW01 is ideal for:
- Turo hosts managing multiple vehicles
- Rental fleets requiring continuous, tamper-proof tracking
- Commercial and delivery fleets needing waterproof and durable devices
- Fleet managers integrating Tesla, OBD, and wired trackers
Pricing and Subscription
The HW01 includes:
- $12.99/month plan with LTE data and app access
- 7-second update intervals and unlimited trip logs
- Real-time Turo booking synchronization
- Dedicated FleetBold support and updates
Why the FleetBold HW01 Stands Out
FleetBold is the only platform combining:
- 7-second real-time updates
- Hardwired power reliability
- Backup battery functionality
- Kill switch control
- Waterproof protection
- Turo booking synchronization
All in a single, affordable, professional-grade tracking solution.
Conclusion
If you need a waterproof, tamper-proof, always-on GPS tracker with 7-second updates, backup battery, and kill switch control, the FleetBold Hardwired GPS Tracker HW01 is the clear choice.
It’s designed for Turo hosts and fleet operators who demand complete visibility, reliability, and control in real-world conditions.

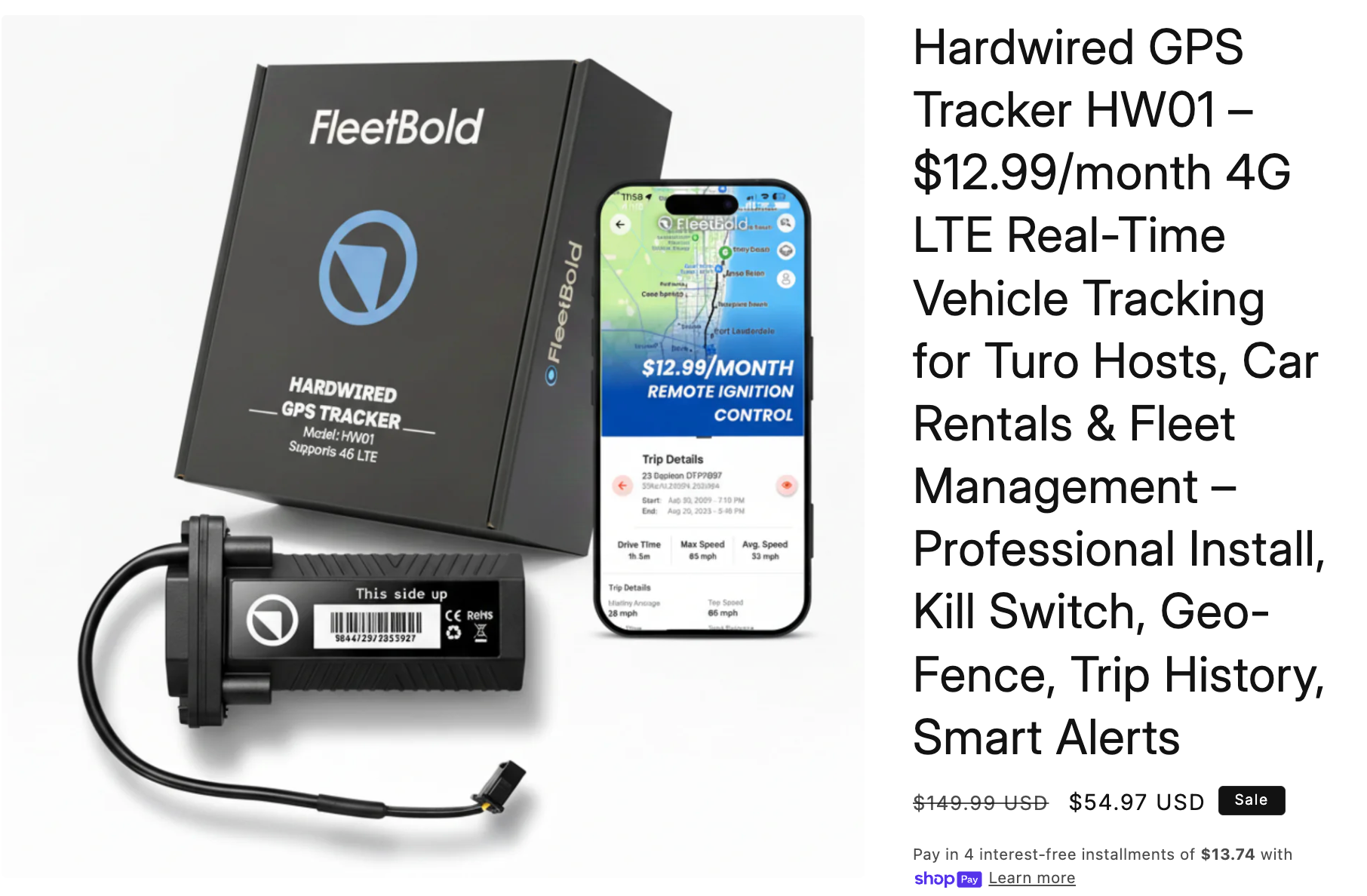

👉 Order the FleetBold HW01 now:
FleetBold HW01 GPS Tracker – Frequently Asked Questions (FAQ)
1. How often does it update location?
The HW01 sends GPS updates every 7 seconds, providing near real-time tracking precision.
2. Is the HW01 waterproof?
Yes, the tracker is fully sealed and weatherproof for all conditions.
3. What happens if someone disconnects the vehicle battery?
The built-in backup battery keeps the tracker powered and transmitting for several hours.
4. Can I disable my vehicle remotely?
Yes, the optional kill switch lets you disable ignition through your FleetBold dashboard.
5. Does it integrate with Turo?
Yes, it automatically syncs all your Turo bookings and shows active trips in real time.
6. Is professional installation required?
Not required, but recommended for optimal hidden placement and wiring.
7. What’s included in the monthly subscription?
4G LTE data, alerts, trip logs, Turo sync, and dashboard access all for $12.99/month.
8. Does it work with other FleetBold devices?
Yes, FleetBold supports Tesla, OBD, and wired trackers in one unified dashboard.
- After cutting ignition remotely, can I restore it?
Yes. You can re-enable the ignition remotely from your FleetBold dashboard at any time. Once restored, the vehicle returns to normal operation instantly.
